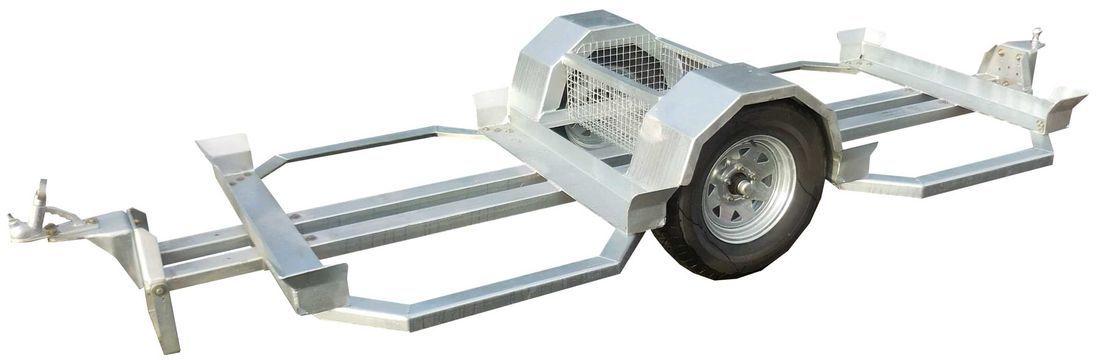

Bin Trailer 2 bins 2 wheels

Crendon Machinery have designed a two-bin trailer with two wheels. These are self-following like airport trailers. This type of bin trailer is very common in Europe

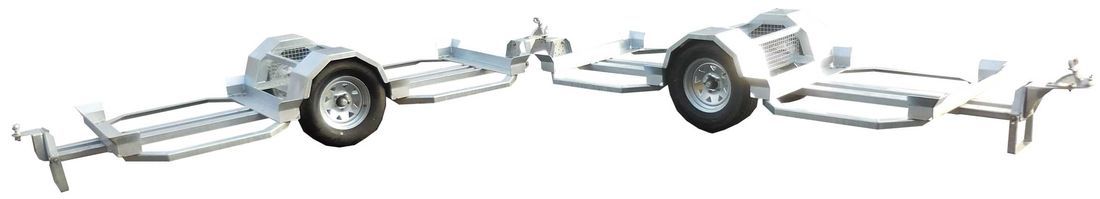

Self-following Trailer
The draw-bar overhangs the same distance at both ends so the proceeding trailer follows the same wheel path as the first Trailer. This works very well in narrow rows  bin sizes are up to 1.2mx 1.2m x 750 kg each, with long feed in guides.



Strong Frame,

Side steps are bolted on and can be removed if not required

Centre Basket has 50mm mesh is between the 2 bins to hold pickers items.

Centre Wheels 215/75 x 14" 8 ply tyres on a hot dip galvanised rims  mounted to ford PCD 2 tonne hubs. Steel mudguard stop dirt flicking into the bins

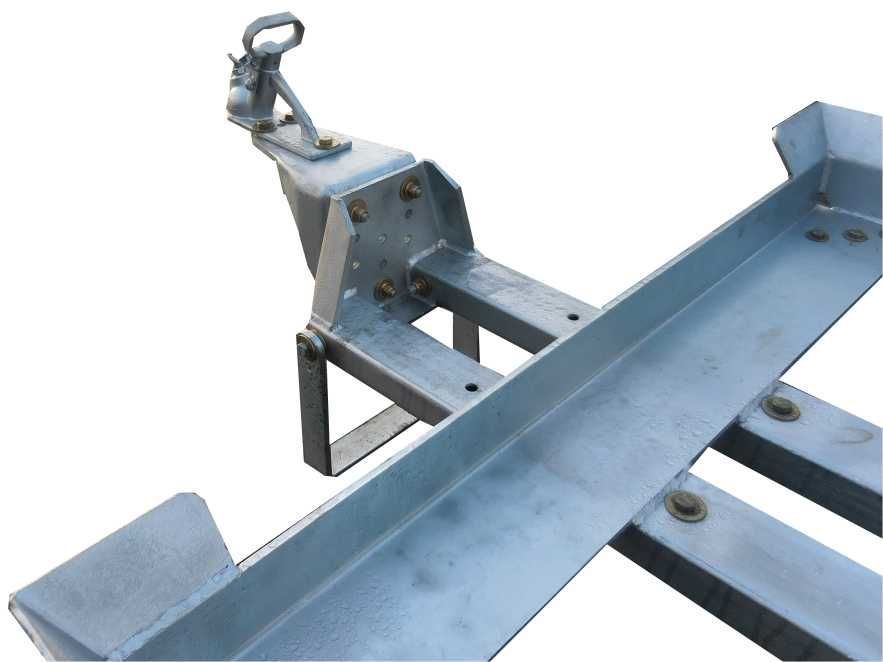

Draw-Bar
Is telescopic in length and adjustable in height at both ends to match any tractor or ATV. Under the draw-bar is an adjustable height swing down stand.
The 50mm hitch & ball can be unbolted each end leaving the standard Ø30mm hole  for tractor drawar hitch pins

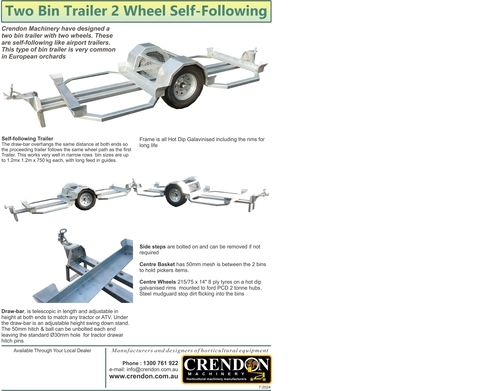

Bin Trailer Self- Following 2 bin 2 wheels Brochure
For Transport of 2 bins around vineyards and orchards, second trailer follows the same wheel path as the first trailer.
Read More
