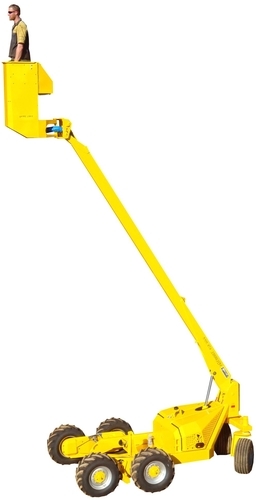

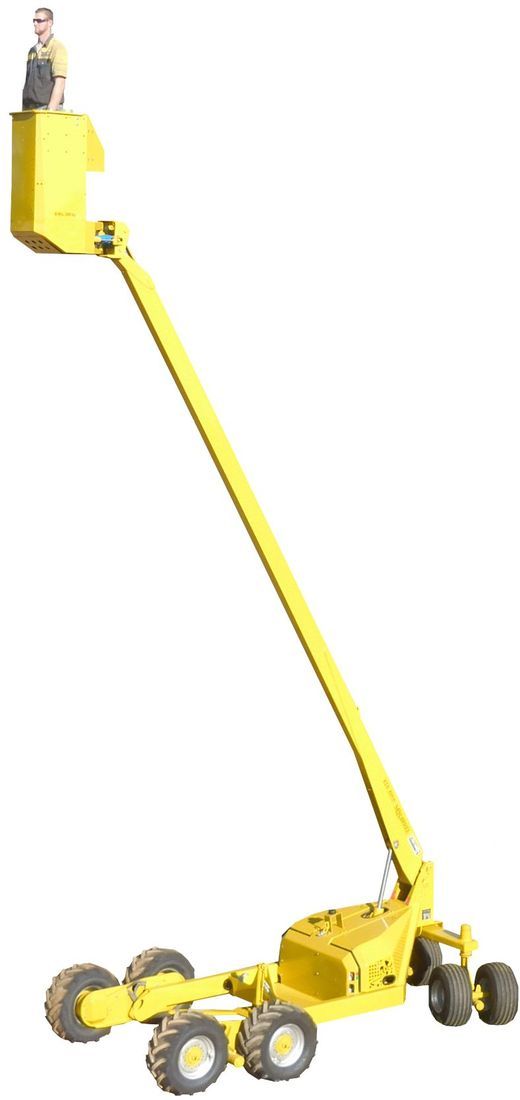

Squirrel 818 BSD-D Bogie Soft Drive - Deluxe8.1m platform height - 10.1m reach This model is ideal for very tall avocado trees, harvesting and pruning on steep ground. Standard features include side swing cage, hydraulic electric three speed, large bogie drive wheels with planetary drive hubs with fail-safe brakes, allowing the operator to work at maximum capacity of 200KG SWL on steep slopes. SQUIRREL’S unique foot control and smooth hydraulic system increases productivity up to 30% ahead of all other machines.
|  |
Quiet EngineA V-twin cylinder 31hp V-twin Vangard petrol engine is standard. The exhaust is extended and piped low down to the rear of the Squirrel away from workers. E-Stop and Start switch, reset circuit breaker are accessible without lifting the bonnet. 83 lt fuel tankThe SQUIRREL engine is fitted with a mechanical fuel pump, fuel filter and has a 83 litre steel fuel tank to allow for up to 4-5 days use. Large storage areaThere is a large storage area in front of the engine bay 1.2m x 0.45m for storage box for wet weather gear, safety harness etc. Bin Forks StandardA set of solid prong bin forks are operated from the cage enabling the operator to move bins up to 600kg. | |
|
| Fully Independent Four caster wheels.Four Ø670mm x 200mm wide independent caster flotation wheels on a pivoting cross axle assists with a smooth ride over difficult terrain. The main cross axle rocks 15º each way and each caster wheel assemble also rocks 15º each way. With other makes of EWPs their main cross axle is only rocked by less than 3º-5º or no pivot at all and their caster wheel assemble is also rigid, so this makes the Squirrel much more manoeuvrable in mounded or terraced rows. |
Wide tyres standard (790mm Ø x 350mm wide)The 818 BSD-D comes standard with bogie drive Ø790mm wheels on walking beam, planetary 8:1 gearbox with hydraulic motor for each wheel, fail-safe brakes. The big wheels give the Squirrel superior traction and smooth ride over difficult terrain without bogging. |  |
|

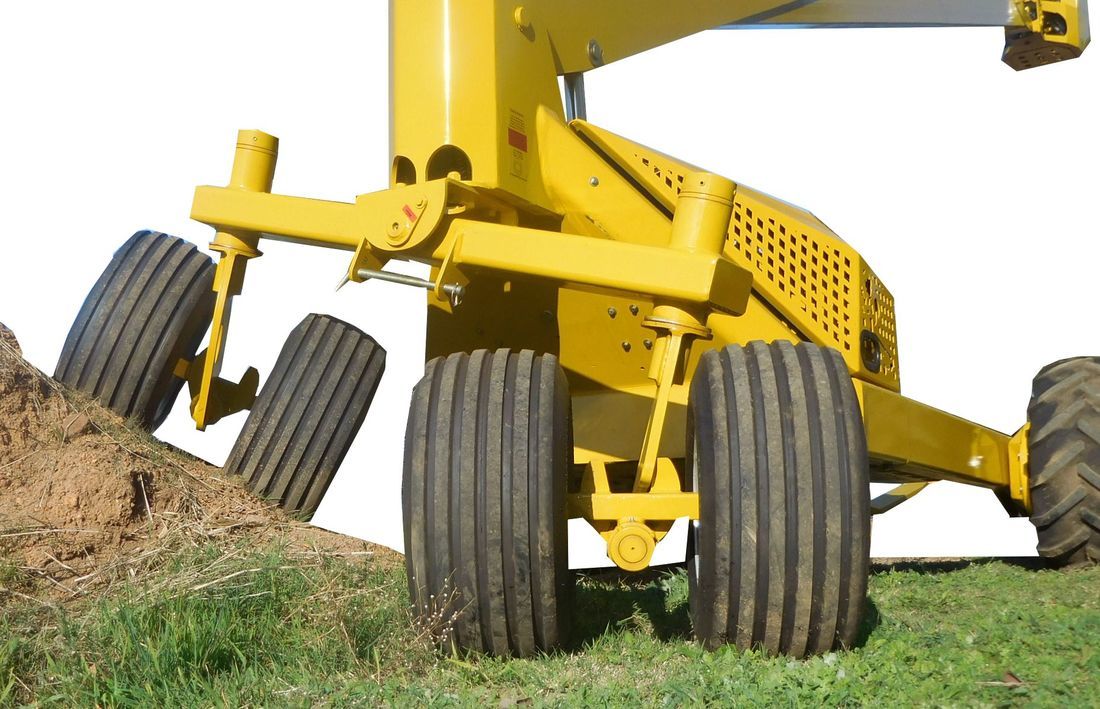

| With large drive & caster wheel, more grip, less bogging, smother ride = increasing productivityThe larger wider wheels (right on the right side in each picture) are standard, make driving over large branches, wheel ruts and soft ground a lot easier and smoother, enabling the operator to continue driving and picking efficiently. On the left side of each picture is what most other makes of EWPs use. |
Genuine Foot ControlsThe SQUIRREL is a machine with unique foot controls, giving three dimensional movement without the operator shifting his feet. A wide seat belt holds the operator directly above the foot pedals giving a safe and comfortable working position. The fully adjustable spring centred foot pedals allow you to continue working with both hands free AT ALL TIMES. This proven feature alone makes the SQUIRREL the most efficient machine. Safe in and out of Cage The SQUIRRELs Cage: is safe and easy to enter and exit - no bending and twisting under hand rails. It is automatically closed and latched with 2 separate latches. As the rear seat belt is attached, getting in and out is safe and fast. To un-latch it requires 2 fingers to lift two latches, then push back. The latch handles are recessed in the back inside corner. The Squirrel gate is fully OHS safety compliant providing the safest way to access the cage, no bending and twisting your back as in other EWPs.
| |
 | Hydraulic Three SpeedThree speed is a standard feature which operates independently from the variable engine rpm, enabling the operator to select a wide range of speeds for safe and faster operation. There is a toggle stick in the cage to change speeds, which can be done while driving. |
For Brochure on this Squirrel and other 008 Models and Squirrel Trailer - Click on the picture to download the PDF file.
Disclaimer: The pictures and information are a guide only. Specifications are subject to change without notice and without liability expressed or implied.
