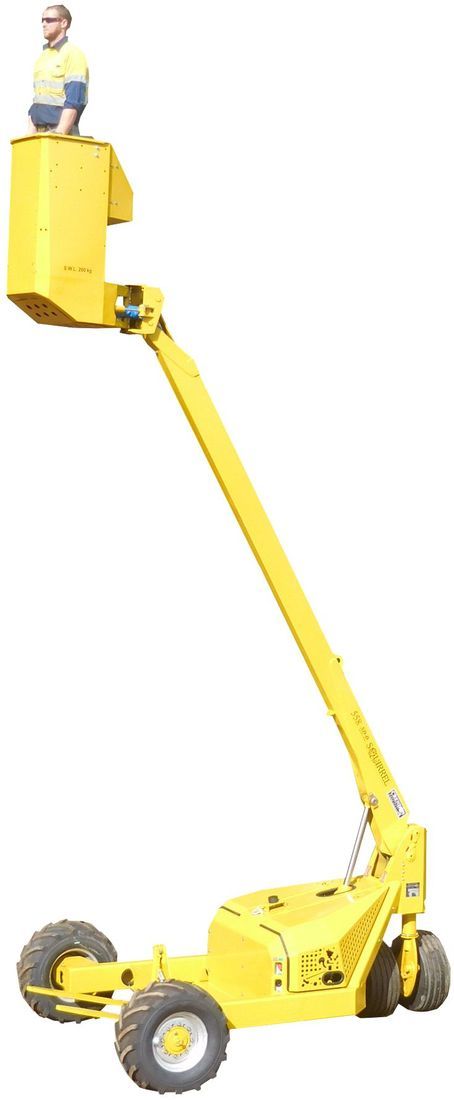

Squirrel 558 SD-D Soft Drive - Deluxe5.5m platform height - 7.5m reach This model is ideal for low avocado trees, harvesting and pruning. Standard features include side swing cage, hydraulic electric three speed, large drive wheels with planetary drive hubs with fail-safe brakes, allowing the operator to work at maximum capacity of 200KG SWL on steep slopes. SQUIRREL’S unique foot control and smooth hydraulic system increases productivity up to 30% ahead of all other machines.
| |
| | |
|

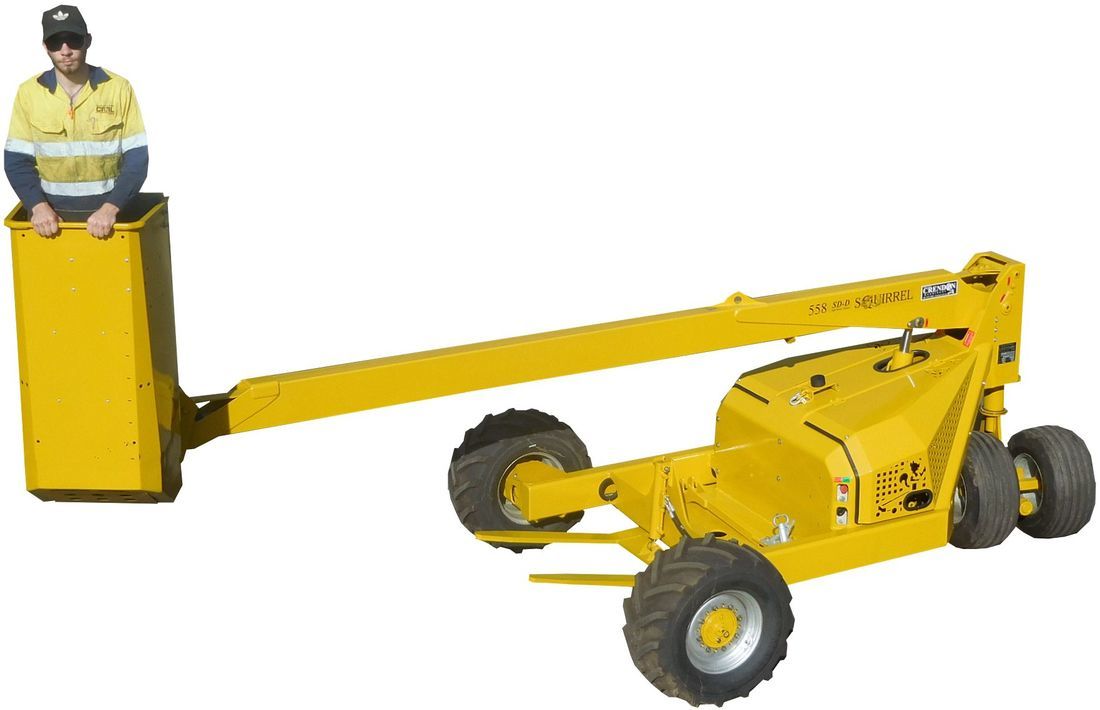

| Side Swing CageThis cage swing allows the operator to reach a greater area instantly without moving the base of the machine. Low back and Compact lengthThe Squirrel 558 has a low back and low profile bonnets. Cage, bonnets and frame back have large rounded corners so overhanging branches easily deflect. The 558 is short in design (about .5m shorter than other machines the same height in the market) |
Quiet EngineA V-twin cylinder 21HP petrol engine. The exhaust is extended and piped low down to the rear of the Squirrel away from workers. Engine auto stops when oil pressure is low. E-Stop and Start switch, reset circuit breaker are accessible without lifting the bonnet. 83 lt fuel tankThe SQUIRREL engine is fitted with a mechanical fuel pump, fuel filter and has a 83 litre steel fuel tank to allow for up to 5 days use. Large storage areaThere is a large storage area in front of the engine bay 1.2m x 0.48m for storage box for wet weather gear, safety harness etc. Bin Forks StandardA set of solid prong bin forks are operated from the cage enabling the operator to move bins up to 600kg. |
|
|
| Wide Twin Caster WheelsTwo independent caster wheels with an additional horizontal pivot provides a very smooth ride over uneven terrain or ruts. As one wheel falls into a rut the other stays at the original level. Effectively the depth of the rut is halved. This allows the operator to comfortably work safely and quickly. Most other makes of EWP’s caster wheel assembly is rigid, so the Squirrel is much more manoeuvrable in mounded or terraced rows. |
|
Drive wheels Ø790mm x 380mm wide 8 ply,Caster wheels Ø670mm x 200mm 8 ply. | With large drive & caster wheel, more grip, less bogging, smother ride = increasing productivityThe larger wider wheels (left on the right side in each picture) are standard, make driving over large branches, wheel ruts and soft ground a lot easier and smoother, enabling the operator to continue driving and picking efficiently. On the left side of each picture is what most other makes of EWPs use. |
Genuine Foot ControlsThe SQUIRREL is a machine with unique foot controls, giving three dimensional movement without the operator shifting his feet. A wide seat belt holds the operator directly above the foot pedals giving a safe and comfortable working position. The fully adjustable spring centred foot pedals allow you to continue working with both hands free AT ALL TIMES. This proven feature alone makes the SQUIRREL the most efficient machine. Safe in and out of Cage The SQUIRRELs Cage: is safe and easy to enter and exit - no bending and twisting under hand rails. It is automatically closed and latched with 2 separate latches. As the rear seat belt is attached, getting in and out is safe and fast. To un-latch it requires 2 fingers to lift two latches, then push back. The latch handles are recessed in the back inside corner. The Squirrel gate is fully OHS safety compliant providing the safest way to access the cage, no bending and twisting your back as in other EWPs. |  |
 | Hydraulic Three SpeedThree speed is a standard feature which operates independently from the variable engine rpm, enabling the operator to select a wide range of speeds for safe and faster operation. There is a toggle stick in the cage to change speeds, which can be done while driving. |
For Brochure on this Squirrel and other 008 Models and Squirrel Trailer - Click on the picture to download the PDF file.
Disclaimer: The pictures and information are a guide only. Specifications are subject to change without notice and without liability expressed or implied.
